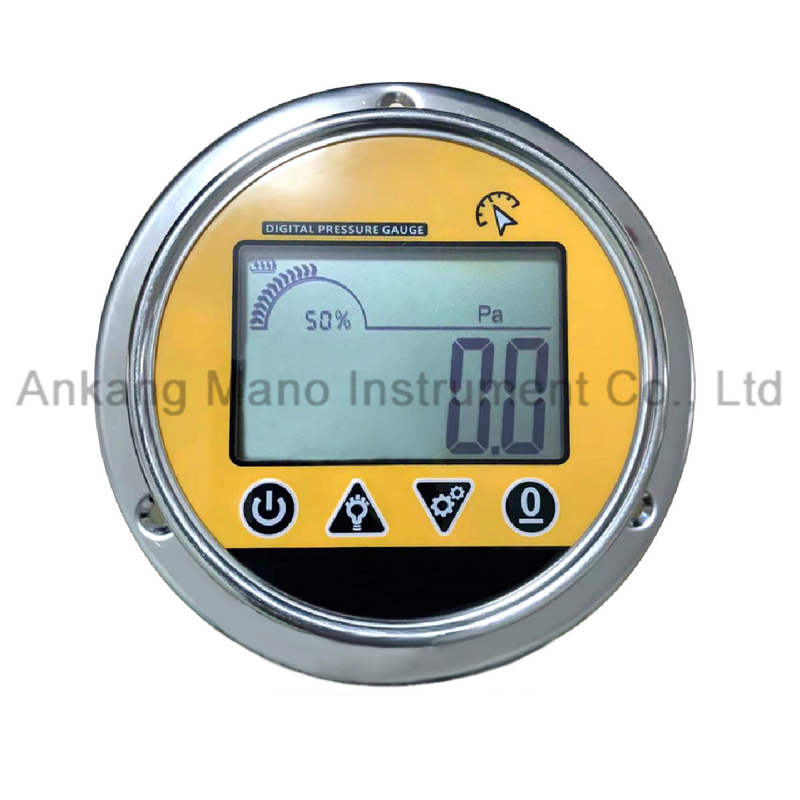

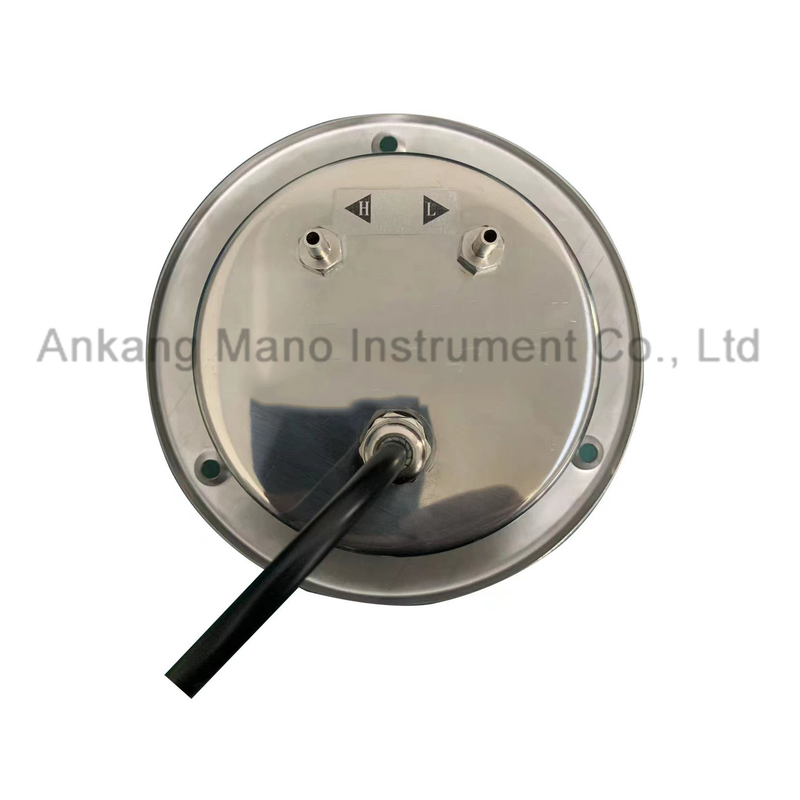

HD-100M Micro Differential Digital Pressure Gauge

Product Introduction

HD-100M series Micro differential digital pressure gauge,adopt American allsensor differential pressure sensor, It has the characteristics of high precision, high reliability and low zero drift. HD-100M series products has various communication forms such as analog output, wireless transmission, RS485 output, etc. It is widely used in clean rooms, negative pressure wards, negative pressure ambulances, dust-free workshops, electronic production automation equipment and other fields.

Technical Parameters

Model: HD-100M
Measuring range: (-100-100)Pa (-250-250)Pa (-500-500)Pa (-1000-1000)Pa (-2500-2500)Pa (-5000-5000)Pa (-7500-7500)Pa (-15000-15000)Pa
Display method: 5 digit LCD
Temperature range: (-20-50)℃
Accuracy: 1FS% 0.5FS%
Connection type: Pagoda interface.
Output signal: RS485,4-20mA,Lora wireless communication for optional.
Power Supply:(12-24)VDC

*Note: Please indicate the measurement range when ordering,
if you need special requirements, please consult our sales engineer.
