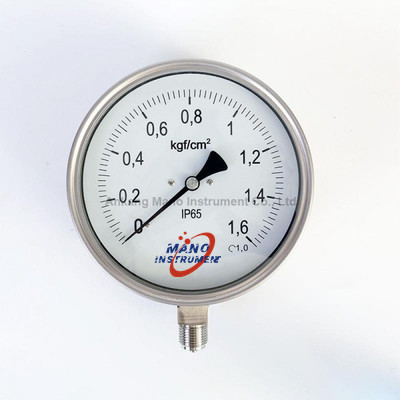

PG-037 SS safety pattern pressure gauge
Model: PG-037L, PG-037B
Measuring Range: -0.1...0 to 0...60 Mpa or other equivalent units
Accuracy Class1.5%
Thread: M20*1.5 G1/2 NPT1/2 etc.
Diameter: 100mm 150mm
- Prev:PG-036 Double scale ss pressure gauge
- Next:PG-038 Sf6 gas pressure gauge
- Product Details
Applications
Increased safety requirements for personal protection with solid baffle wall designed.
With liquid-filled case for applications with high dynamic pressure loads or vibrations.
For gaseous and liquid aggressive media that are not highly viscous or crystallizing, also in aggressive ambience.
Measure the pressure of medium in technological process which has higher requirements of corrosion-proof and anti-vibration.
Process industry: widely used in oil industry, chemical/petrol-chemical industry, chemical fiber industry, metallurgical industry, power station, mining, on- and offshore, environmental technology, machine building and general plant construction and so on.
Features
Safety version with safety explosion-proof layer and safety pressure relief back cover.
The design is reasonable, the craft is exquisite.
All stainless steel construction.
Excellent load-cycle stability and shock resistance.
Pressure range can up to 0-1000bar.
Description
|
Model PG-037L: SS safety pressure gauge, lower mount PG-037B: SS safety pressure gauge, back mount Nominal size in mm (NS in mm) 100mm 150mm Accuracy class NS 100, 150: 1.5% Scale ranges From -14.5...0 to 0...8700 psi; (from -1...0 to 0...600 bar or other equivalent units). or all other equivalent vacuum or combined pressure and vacuum ranges Pressure Unit Mpa psi bar kg/cm2 Kpa etc. Dial Aluminum, white, black lettering, Single scale; Double scale; Special scale Pointer Aluminum, black. Case Stainless steel 304 safety explosion-proof layer and safety pressure relief back cover (316 or 316L for optional) Movement Stainless steel 304 Ring Bayonet ring, stainless steel 304 (316 or 316L for optional) |
Window Laminated safety glass Ingress protection IP65 Thread size M20*1.5 G1/2 NPT1/2 etc. Bourdon tube Stainless steel 316 C-type or helical type (316L for optional) Process connection Stainless steel 304 Lower mount (radial) or lower back mount (316 or 316L for optional) Pressure limitation NS 100, 150: Steady: 0.75 x full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value Permissible temperature Ambient: -40 ... +70 °C without liquid filling -20 ... +60 °C gauges with glycerin filling Medium: +200 °C maximum without liquid filling; +100 °C maximum with liquid filling Temperature effect When temperature of the measuring system deviates from reference temperature (+20℃) max error ±0.4℃ /10K of full scale value. Filling liquid (for model 233.50) Dry but fillable or Glycerin (Silicone for optional) |
Options
Accuracy 1.0% for optional
Assembly on diaphragm seals, see product review diaphragm seals
Phenolic case
Customer’s logo dial for OEM or ODM
HOW TO ORDER” SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options
Our products are sold all over the world, you can rest assured.
